BAR MILLS

SHUR-LOCK

Shur-Lock composite rolls are the industry's leading innovation for conventional bar mill rolls. As part of SinterMet's Solutions Engineering, Shur-Lock rolls help your mill experience:

- Increased mill utilization by as much as 20 times versus cast iron
- Consistent, high-quality, in-tolerance product
- Reduced roll inventory
- Increased tons per groove
- Less time redressing
- Reduced scrap
- Lower rejection rates
- Consistent product size

The bottom line...lower costs!

The Shur-Lock composite roll system provides increased product quality versus cast iron rolls. As rod or bar passes through the Shur-Lock composite roll it maintains a much more consistent shape and tolerance, while significantly reducing wear. The result is a better finished product.

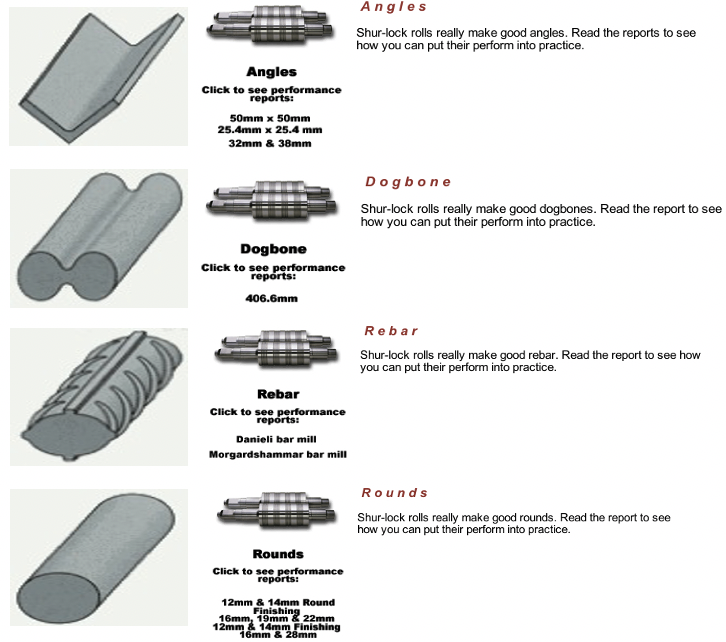

View Shur-Lock Roll Information

Assembly Diagrams

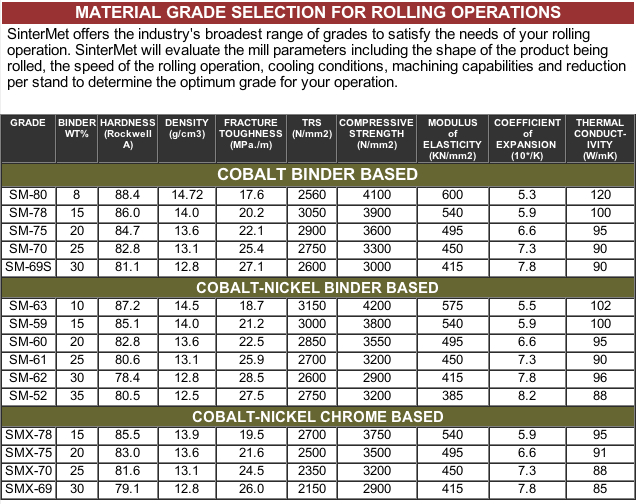

Grade Information

Grade recommendations are provided below to reference with the performance reports shown above
